TP-Link CPE210: Advanced Outdoor Wireless Access Point

The TP-Link CPE210 is a cost-effective and high-performance outdoor wireless device designed for long-range point-to-point or point-to-multipoint networking applications. With its durable design and advanced software features, it is perfect for delivering reliable wireless connectivity in outdoor environments, such as rural areas, remote locations, or industrial setups.

Key Features and Specifications

Wireless Performance

• Wireless Standards: Complies with IEEE 802.11b/g/n standards, operating on the 2.4 GHz frequency band.
• Data Rate: Supports speeds of up to 300 Mbps for smooth and stable connectivity.
• Transmission Power: Adjustable power of up to 27 dBm/500 mW for extended range and reliable performance.

Antenna System

• High-Gain Antenna:
  • 9 dBi directional dual-polarized antenna with advanced beamforming for focused signal transmission.
  • Reduces interference to maintain stable connections over long distances.
• Beamwidth: 65° (horizontal) and 35° (vertical), ensuring targeted signal coverage.

Outdoor Durability

• Weatherproof Enclosure:
  • IP65-rated housing protects against harsh weather conditions, including rain, dust, and extreme temperatures.
• Operating Temperature: Supports a wide temperature range from -30°C to 70°C (-22°F to 158°F).

Long-Distance Transmission

• Provides wireless coverage over distances of up to 5 kilometers (3.1 miles) in point-to-point configurations.

Flexible Networking Modes

• Supports multiple operation modes for versatile deployment:
  • Access Point (AP): Creates a wireless network.
  • Client: Extends an existing network.
  • Bridge/Repeater: Boosts signal range and improves coverage.
  • WISP Client: Enables wireless service provider deployment.

Advanced Software Features

• Pharos Control:
  • Centralized management software for configuring and monitoring multiple devices from a single interface.
• TP-Link MAXtream TDMA Technology:
  • Reduces latency and improves performance in high-density deployments.
• Channel Width Adjustment: Supports 5/10/20/40 MHz channels for flexible frequency usage.
• QoS (Quality of Service): Ensures prioritization of critical data, such as VoIP or streaming.

Hardware and Build

• Processor: Qualcomm Atheros chipset for efficient and stable operation.
• Memory: 64 MB DDR2 RAM to handle advanced features effectively.
• Ethernet Port: 1× 10/100 Mbps RJ45 port with passive PoE support for flexible power placement.
• LED Indicators: Displays signal strength for easy alignment and setup.

Installation and Management

• Passive PoE Support: Comes with a PoE injector for easy deployment up to 60 meters from the power source.
• Easy Mounting: Includes adjustable brackets for convenient installation on walls or poles.
• Web Interface: Simple and intuitive interface for remote management.

Use Cases

• Point-to-Point Links: Connects two remote networks over long distances.
• Point-to-Multipoint Setup: Serves as a base station for multiple client devices.
• Outdoor Wi-Fi Coverage: Provides wireless connectivity for outdoor venues like parks, farms, or construction sites.
• Rural Networking: Bridges connections in areas with limited internet infrastructure.

In the Box

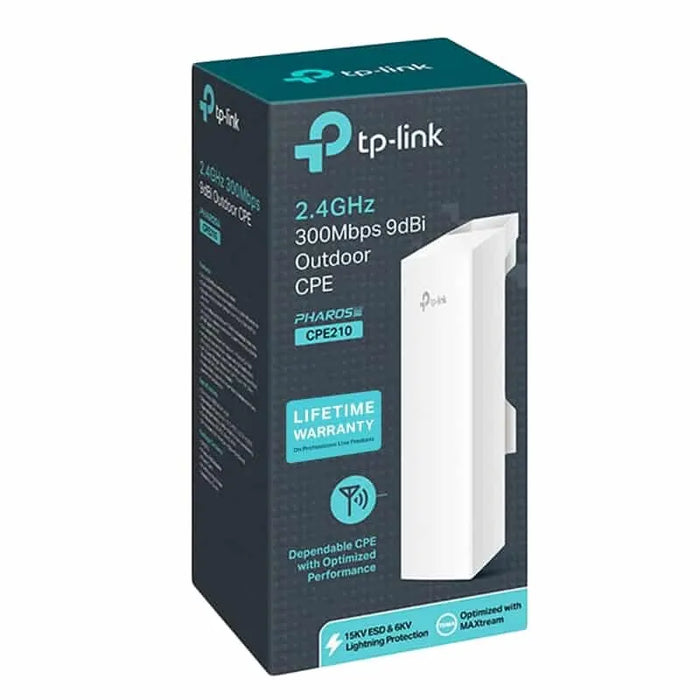

• TP-Link CPE210 Outdoor Wireless Access Point
• Passive PoE Injector
• Power Adapter
• Mounting Kits
• Quick Installation Guide

The TP-Link CPE210 is a robust and affordable solution for extending wireless networks in outdoor environments. With its advanced features, durable design, and long-range capabilities, it is a reliable choice for high-performance networking in demanding outdoor scenarios.
