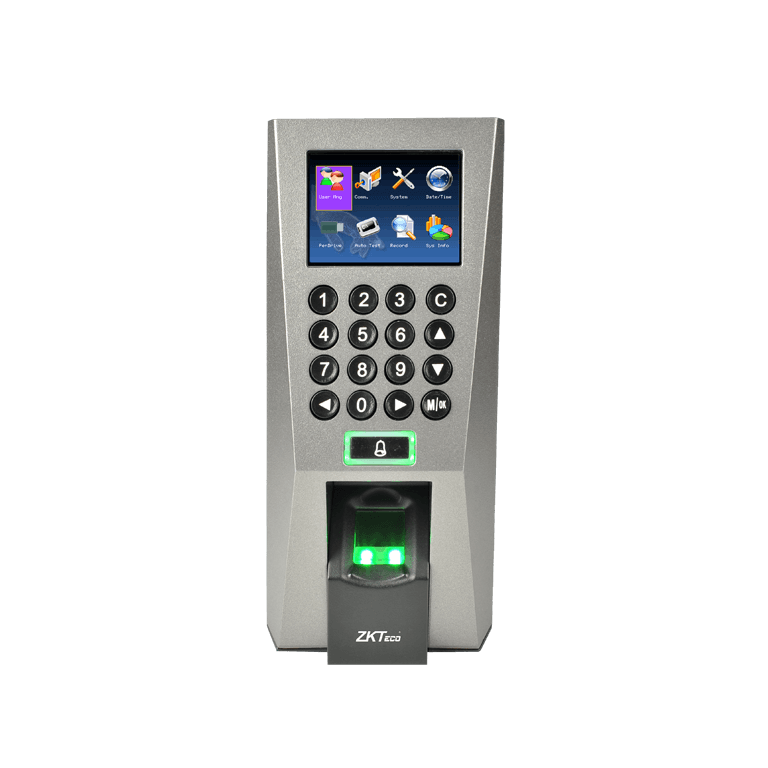

ZKTeco F18 Biometric Access Control Terminal

The ZKTeco F18 is a highly reliable biometric access control terminal that offers advanced security features to meet the needs of various businesses, offices, and high-security facilities. It utilizes fingerprint recognition technology to provide secure and efficient access control, while also supporting RFID card authentication. Designed for medium to large-sized organizations, the F18 offers a wide range of features to improve both security and user management.

Key Features:

1. Advanced Fingerprint Recognition:

   • The F18 features optical fingerprint scanning, using advanced fingerprint recognition technology to accurately identify users.
   • It supports up to 3,000 fingerprint templates, making it ideal for large-scale deployments.
   • Fingerprint verification is quick, secure, and eliminates the need for physical cards or PINs, ensuring a touch-free experience.

2. RFID Card Support:

   • In addition to fingerprint recognition, the F18 supports RFID card authentication, allowing users to gain access using EM cards or Mifare cards.
   • This dual-authentication option offers flexibility and the ability to combine different methods based on security requirements.

3. Large User Capacity:

   • The device supports up to 3,000 fingerprint templates and 30,000 event logs, making it suitable for medium to large businesses.
   • It is capable of storing up to 10,000 RFID card users, providing scalability for a growing business.

4. Multiple Authentication Methods:

   • Users can choose between fingerprint authentication, RFID cards, or a combination of both to increase security.
   • The ability to use multiple methods allows administrators to configure security policies based on specific needs.

5. Networking and Integration:

   • The F18 supports TCP/IP networking, enabling integration with centralized access control systems for easy management.
   • It is compatible with Wiegand output, allowing integration with external devices like electric locks, alarm systems, and other controllers.
   • USB interface support is also available for data transfer and system configuration.

6. Color LCD Display:

   • The 2.8-inch color TFT LCD screen allows for easy user interaction and management.
   • The clear display shows real-time status, user information, and provides menu navigation for administrators.

7. Real-Time Data Reporting:

   • The device can store up to 30,000 access logs and provides real-time reporting of user activities.
   • The logs can be accessed via the TCP/IP network, allowing administrators to monitor access in real time or generate reports based on specific timeframes.

8. Anti-Tamper Features:

   • The ZKTeco F18 comes with anti-tamper protection to detect and prevent unauthorized attempts to open or manipulate the terminal.
   • Built-in alarm notifications are triggered during suspicious activities, such as tampering or incorrect access attempts.

9. User-Friendly Interface:

   • The intuitive interface simplifies enrollment, user management, and system configuration.
   • Built-in voice prompts guide users through the access process, providing audio feedback on successful or unsuccessful authentication.

10. Standalone or Networked Operation:

    • The F18 can function as a standalone access control device, or it can be integrated into a larger network of terminals for centralized management.
    • Web-based or software management options allow administrators to control and manage the system remotely.

Specifications:

• Fingerprint Capacity: 3,000 templates
• RFID Capacity: 10,000 card users (EM & Mifare)
• Event Logs: 30,000 records
• Display: 2.8-inch color TFT LCD screen
• Communication: TCP/IP, RS485, Wiegand
• Power Supply: DC 12V
• Operating Temperature: 0°C to 45°C (32°F to 113°F)
• Operating Humidity: 20% to 80% RH (non-condensing)
• Dimensions: 183mm x 150mm x 45mm (7.2" x 5.9" x 1.8")
• Fingerprint Sensor: Optical sensor
• Audio/Visual Indicators: Buzzer, LED light, and voice prompts for user feedback
• Backup Methods: USB flash drive for data transfer and configuration
• Wiegand Interface: Wiegand input/output supported for third-party integration

Applications:

• Corporate Offices: Secure access to restricted areas and track employee entry/exit times.
• Factories and Warehouses: Improve security and manage personnel access to sensitive zones.
• Educational Institutions: Manage access to dormitories, libraries, and staff rooms.
• Banks and Financial Institutions: Restrict access to secure areas such as vaults, data centers, and offices.
• Government and High-Security Facilities: Enforce stringent access control policies for sensitive areas.
• Residential Buildings: Control access to apartment complexes, parking lots, and main entrances.
