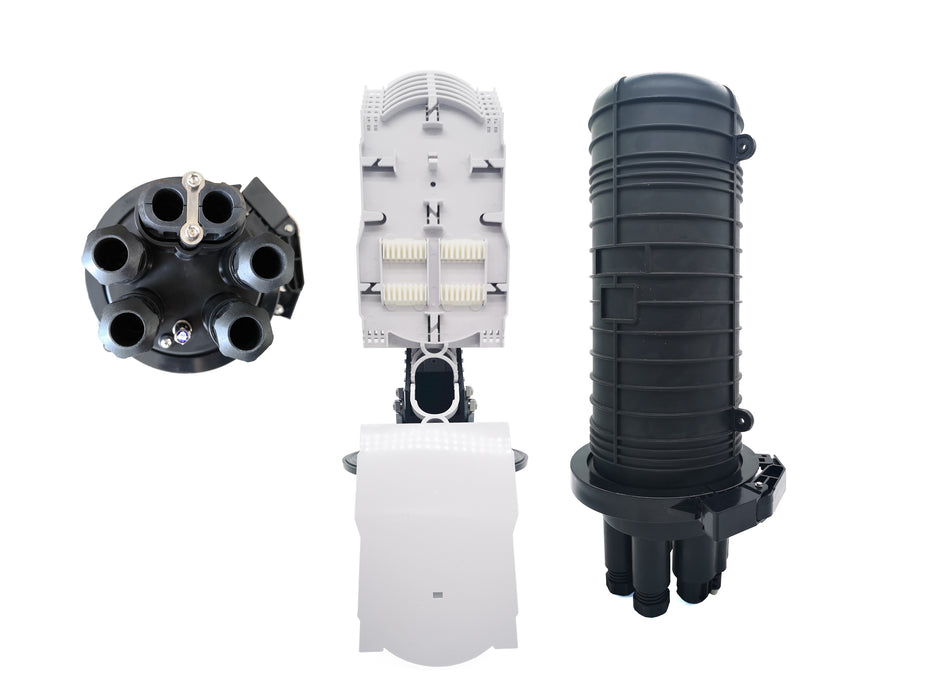

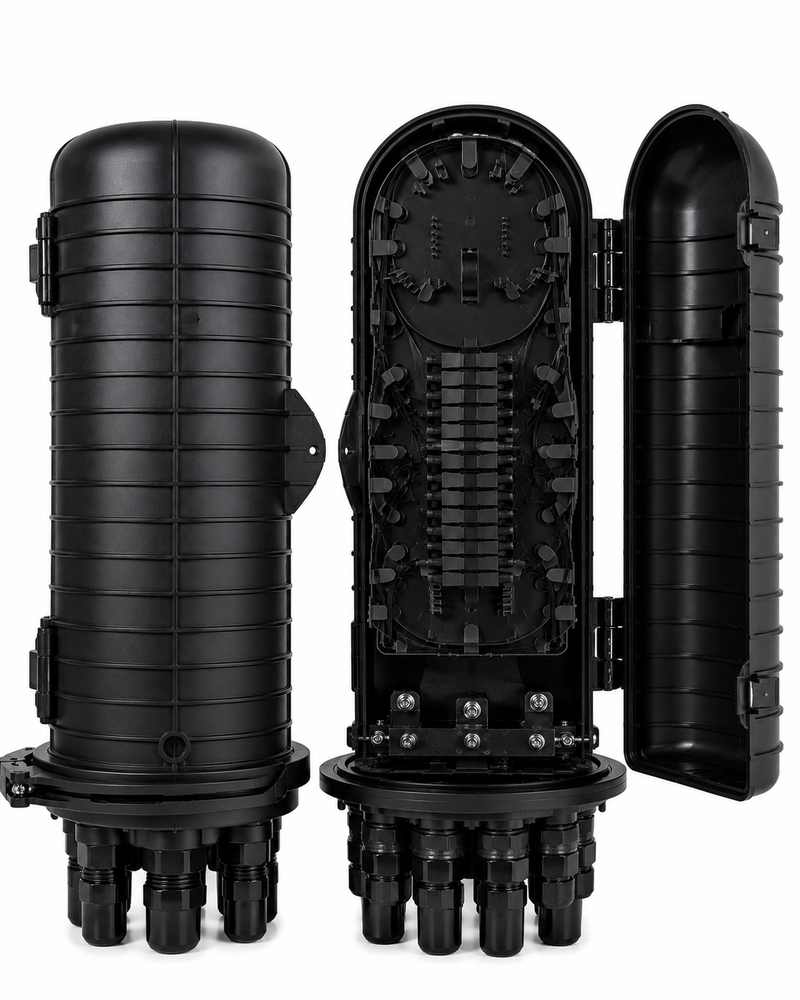

Fibre Dome Outdoor Enclosure – 96 ‑Core
The 96-core Fibre Dome Outdoor Enclosure is designed for high-density fibre networks in demanding outdoor environments. Its robust, UV-resistant housing protects splices while ensuring organized fibre management. Ideal for FTTH, PON, and telecom access networks, this enclosure supports flexible installation, easy maintenance, and secure fibre branching.
Key Features
-
Supports 96 Fibre Cores – Compact, high-capacity design for single-fibre or ribbon cables.
-
Outdoor-Rated Housing – Durable, UV-resistant engineering plastic (PP/PC/ABS).
-
IP68 Protection – Water- and dust-proof for outdoor, underground, or manhole deployment.
-
Multi-Port Cable Entry – 1 oval + 3–4 round ports for trunk and drop cables.
-
Flexible Mounting Options – Wall, pole, aerial, or duct installation.
-
Splice Tray Management – Organizes fibres with proper bend radius support (≥40 mm).
-
Easy Re-Entry – Reusable seals allow maintenance without compromising protection.
-
Wide Temperature Range – Operates from –40 °C to +60 °C.
-
Cable Branching Capabilities – Accommodates large diameter trunks for main-to-drop connections.
-
Sealing Options – Heat-shrinkable or mechanical sealing for reliable closure.
Technical Specifications
| Specification | Details |
|---|---|
| Fibre Capacity | Up to 96 single-core fibres (or 288 ribbon fibres) |
| Material | PP/PC/ABS engineering plastic, UV-resistant |
| Protection Grade | IP68 |
| Cable Ports | 1 oval + 3–4 round ports |
| Operating Temperature | –40 °C to +60 °C |
| Installation Options | Wall, pole, duct, underground, aerial |
| Internal Splice Trays | 4–6 trays with fibre bend radius support |
| Sealing Method | Heat-shrink or mechanical |
| Applications | FTTH, PON, telecom access networks, branching hubs |
Why Choose This Enclosure?
-
High-density fibre support reduces space and equipment costs.
-
Rugged outdoor construction ensures reliability in harsh conditions.
-
Flexible deployment and easy maintenance for long-term operations.
-
Organized internal fibre management improves network performance and troubleshooting.
Ideal Applications
-
FTTH/FTTB access networks
-
Aerial, pole, duct, or underground installations
-
Branching/feeder junctions in PON or metro networks
-
Outdoor wall-mounted distribution points
Installation Tips
-
Select correct cable diameter for ports.
-
Maintain ≥40 mm fibre bend radius inside trays.
-
Verify proper sealing using heat-shrink or mechanical methods.
-
Mount enclosure in a safe, protected location.
-
Label splice trays and leave spare capacity for future expansion.
-
Inspect periodically for water ingress or physical damage.
