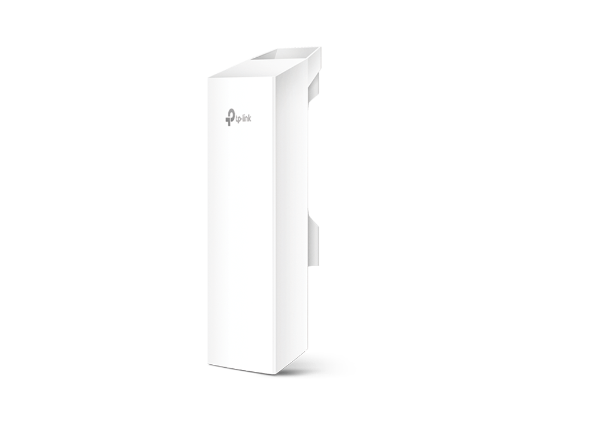

TP-Link CPE220: High-Performance Outdoor Wireless Access Point

The TP-Link CPE220 is an advanced outdoor wireless device designed for long-range point-to-point or point-to-multipoint networking solutions. It delivers high-performance wireless connectivity over extended distances, making it ideal for rural areas, industrial environments, or remote monitoring setups.

Key Features and Specifications

Wireless Performance

• Wireless Standard: Complies with IEEE 802.11b/g/n standards, operating in the 2.4 GHz band.
• Data Rate: Supports speeds of up to 300 Mbps for stable and high-speed connectivity.
• Transmission Power: Adjustable transmission power up to 30 dBm (1000 mW) for extended coverage.

Antenna System

• High-Gain Antenna: Equipped with a 9 dBi directional antenna for focused signal strength and reduced interference.
• Polarization: Dual-polarized design enhances reliability and minimizes signal degradation.

Durability and Design

• Weatherproof Construction: IP65-certified enclosure provides protection against dust, rain, and extreme weather conditions.
• Wide Operating Temperature Range: Functions reliably between -30°C and 70°C (-22°F to 158°F).

Transmission Range

• Capable of wireless transmission over distances of up to 13 kilometers in point-to-point deployments.

Networking Features

• Passive PoE Support: Includes a Passive PoE injector for flexible placement up to 60 meters from the power source.
• Multiple Operation Modes:
  • Access Point (AP) mode for connecting wireless clients.
  • Client mode for bridging networks.
  • Repeater/Range Extender mode for boosting coverage.
  • WISP Client mode for wireless internet service providers.

Advanced Software Features

• Pharos Control: Centralized management software for monitoring and configuring multiple devices.
• QoS (Quality of Service): Ensures prioritized bandwidth for critical tasks like streaming and VoIP.
• Channel Width Adjustment: Supports 5/10/20/40 MHz channels for optimized frequency usage.
• TDMA Technology: Reduces latency and improves efficiency in high-density environments.

Hardware Specifications

• Processor: Powered by a Qualcomm Atheros chipset for robust performance.
• Memory: 64 MB DDR2 RAM for smooth multitasking.
• Ethernet Port: 1× 10/100 Mbps Ethernet port for network and PoE connection.
• LED Indicators: Signal strength indicators simplify alignment during installation.

Security

• Encryption: WPA/WPA2-PSK support ensures secure wireless communication.
• MAC Filtering: Prevents unauthorized access by restricting devices based on MAC addresses.

Installation and Management

• Easy Setup: Lightweight design with adjustable mounting brackets for poles or walls.
• Remote Management: Accessible via a web interface or Pharos Control software for effortless configuration and updates.

Use Cases

• Point-to-Point Connectivity: Connects two distant networks seamlessly.
• Point-to-Multipoint Setup: Acts as a base station for multiple clients.
• Wi-Fi for Outdoor Areas: Ideal for open spaces like parks, farms, and industrial zones.
• Rural Internet Access: Bridges internet connectivity in remote areas with limited infrastructure.

In the Box

• TP-Link CPE220 Device
• Power Adapter
• Passive PoE Injector
• Mounting Kits
• Quick Installation Guide

The TP-Link CPE220 combines advanced technology, robust construction, and user-friendly management to deliver reliable outdoor wireless performance. Whether for long-range data links or boosting coverage in outdoor spaces, it is a versatile and cost-effective networking solution.
