Fibre Dome Outdoor Enclosure – 24‑Core

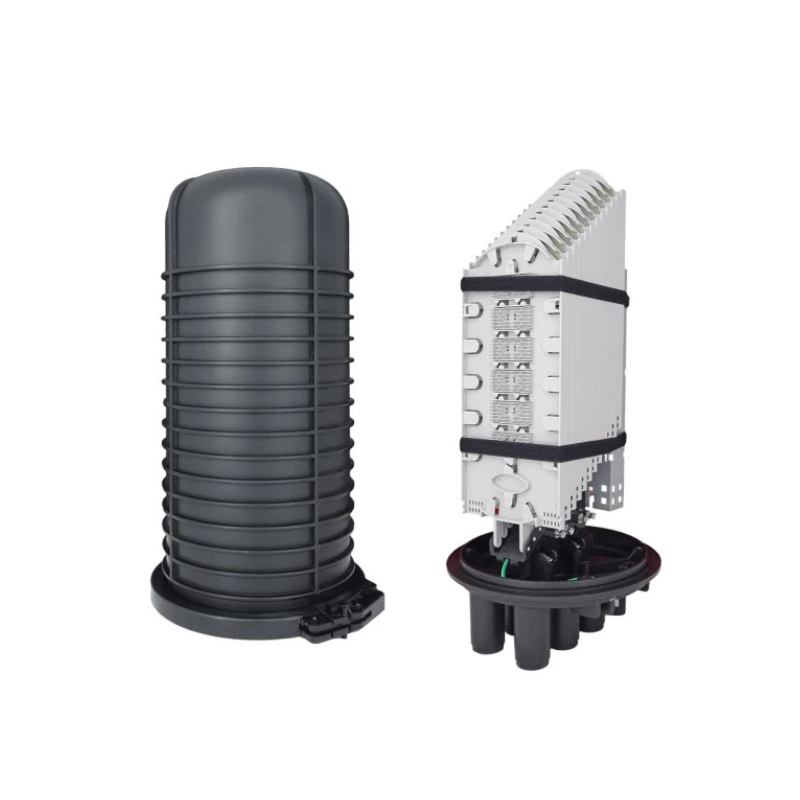

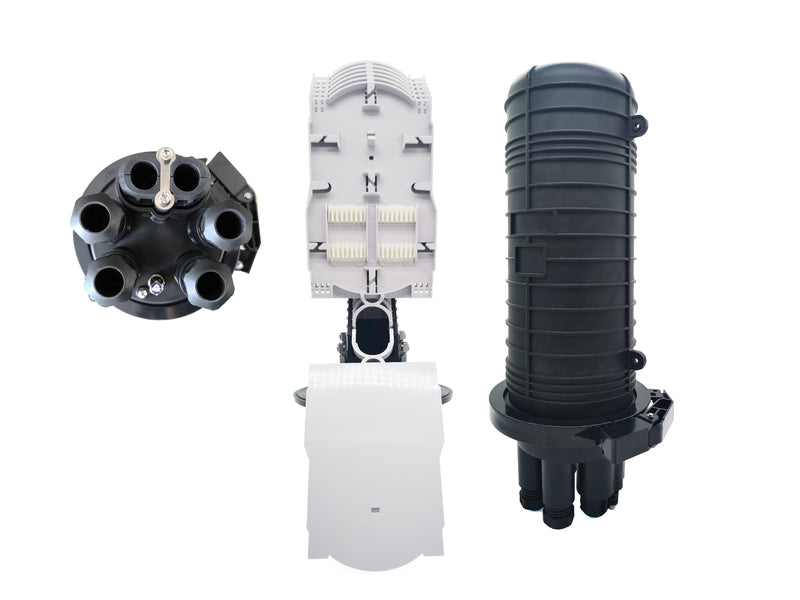

The 96‑Core Dome Splice Enclosure is an IP68-rated outdoor housing that secures up to 96 optical fibres. It typically houses 4 splice trays (each supporting 24 fibres) and is optimized for continuity and branching in aerial, pole, duct, handhole, or buried deployments.
🔧 Key Features
-
High Core Capacity: Supports 96 cores using 4 × 24‑core trays (bunchy) or alternative combinations, depending on model.
-
Robust Sealing: IP68-rated closure using heat-shrink or mechanical sealing, ensuring long-term waterproofing and re‑entry capability.
-
Durable Construction: Shell typically made from UV-resistant PC or PP+GF materials offering impact and corrosion resistance.
-
Flexible Cable Entry: Usually configured with 4 ports—commonly 1 oval inlet for through cable and 3 round drop outlets, accommodating cables from roughly 5 mm to 25 mm OD.
-
Field-ready Design: Re-enterable, easy to open/close, with sealing components that preserve integrity through repeated access.
-
All-weather Reliability: Operates in extreme climates from about –40 °C to +60 / +65 °C, with IK09-rated impact resistance.
📋 Technical Specifications
| Specification | Typical Value |
|---|---|
| Maximum Core Capacity | Up to 96 fibres (4 × 24‑core trays) |
| Dimensions (H × Ø) | ~410–440 mm × 190–205 mm |
| Weight | Approximately 2.2–2.5 kg |
| Cable Port Configuration | Typically 1 oval inlet + 3 round outlets |
| Cable Diameter Range | Ø ≈ 5 mm to 25 mm |
| Material | UV-resistant polycarbonate (PC) or PP+GF |
| Sealing Mechanism | Heat‑shrink sealing or mechanical clamp |
| Ingress Protection | IP68 |
| Operating Temperature | –40 °C to +65 °C |
| Impact Resistance | IK09 / 16 N·m |
| Tray Configuration | Max 4 trays × 24 cores (bunchy), up to 4 ribbon trays |
🔹 Perfect for fibre optic network deployments in harsh outdoor environments.
