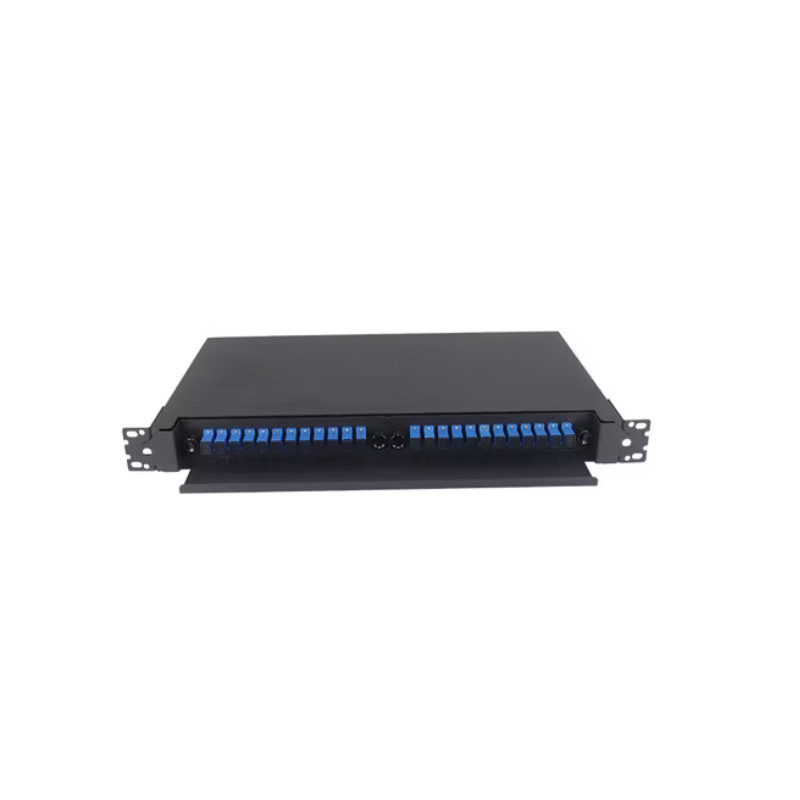

Fibre Simple ODF SC/UPC 24 core
A compact yet robust 19″ rack‑mount Optical Distribution Frame (ODF) designed for efficient, secure, and organized management of fiber optic networks. Ideal for telecom, data centers, FTTH, LAN/WAN, and CATV applications.
🛠️ Key Features
-
Single-mode SC/UPC interfaces across 24 ports for reliable, low‑loss connections
-
Durable cold‐rolled metal frame with corrosion‑resistant coating—strong, dust‑proof, anti‑shock
-
19‑inch 2U standard profile, easy to install into rack cabinets
-
Changeable splice trays (typically 2 trays) to handle fusion splicing and pigtails
-
Front‑panel marking aids and adapter fences/contact plates for clear port identification
-
Optimized fiber management, with built‑in cable routing, ample bend radius space, and coiling area
-
Lightweight (~6–7 kg) for easy handling yet structurally stable
📏 Technical Specifications
| Specification | Detail |
|---|---|
| Model | ODF‑24 SC/UPC (2× splice tray) |
| Dimensions | ~483 × 255 × 89 mm (19″ × 2 U) FS+8fiberorigin.com+8Flytec Computers+8 |
| Material | Cold‑rolled steel with coated finish |
| Weight | ~6.3 kg |
| Capacity | 24 fiber cores (with pigtails and adapters) |
| Adapter Type | SC/UPC (interchangeable panels available) |
| Environment | Indoor use, standard −25 °C to +55 °C |
| Included Accessories | Pigtails, adapters, splice trays, screws |
✅ Benefits
-
Space-efficient: Combines splicing, termination, and patching in a single, 2U rack unit.
-
Durable and safe: Protective housing keeps fibers dust‑free and secure.
-
Easily serviceable: Glyid‑rail drawer trays allow clean fiber access without disturbing connections.
-
Scalable and flexible: Adapter panels and trays can be reconfigured or expanded for larger cores or different connector types.
