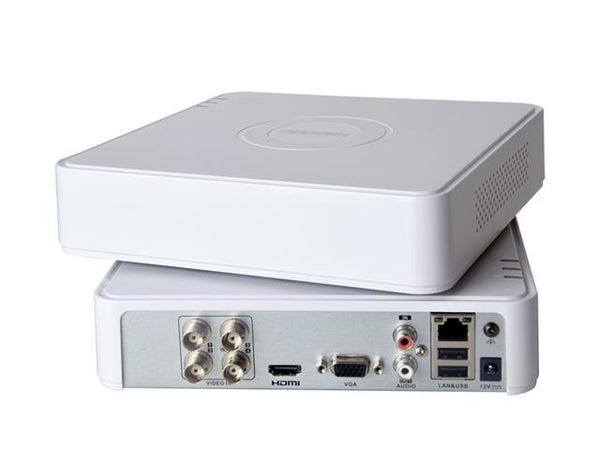

Hikvision DS-7104HGHI-M1(STD)(C) 4 Channel 1080p DVR – Turbo HD Recorder (Plastic)

The Hikvision DS-7104HGHI-M1(STD)(C) is a compact and reliable 4-channel DVR designed for home and small business surveillance systems. It supports multiple camera technologies, making it highly versatile for both new installations and upgrades.

With 1080p Lite recording, this DVR provides clear video footage suitable for monitoring shops, offices, homes, and small commercial spaces. Its H.265+ compression technology ensures efficient storage, allowing you to record longer periods without needing large hard drives.

Key Features

• 4 Channel DVR – Supports up to 4 analog cameras (HDTVI/AHD/CVI/CVBS)
• 1080p Lite Recording – Delivers clear HD video quality for surveillance systems
• Hybrid Support (Analog + IP) – Add up to 5 IP cameras (up to 2MP) for flexible setups
• H.265+ Video Compression – Saves storage space and reduces bandwidth usage
• Motion Detection 2.0 – Smart detection distinguishes humans and vehicles, reducing false alarms
• Dual Video Output (HDMI + VGA) – Connect to monitors or TVs simultaneously
• Remote Viewing Support – Monitor cameras via mobile apps and network access
• Compact Plastic Design – Lightweight and cost-effective housing for small installations
• Audio Support – 1-channel audio input/output (via RCA or coaxial)



  Specifications

  • Model: DS-7104HGHI-M1(STD)(C)
  • Channels: 4 Analog Channels
  • IP Camera Support: Up to 5 channels (max 2MP)
  • Recording Resolution: Up to 1080p Lite
  • Compression: H.265+/H.265/H.264+/H.264
  • Video Output: HDMI + VGA
  • Storage: 1 SATA HDD (up to 4TB)
  • USB Ports: 2 × USB 2.0
  • Network: RJ45 Ethernet (10/100 Mbps)
  • Audio: 1 in / 1 out
  • Body: Plastic casing
