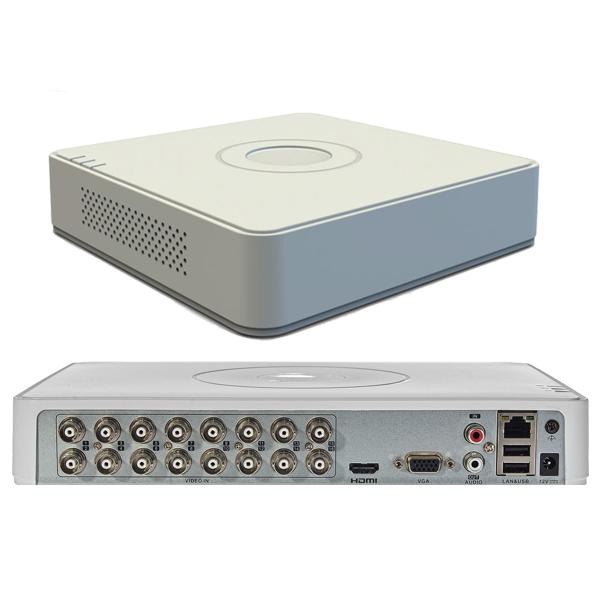

HIKVISION Turbo HD 7200 Series DVR – 16 Channel (Plastic Body)

The Hikvision DS-7116HGHI-M1(STD)(E) is a powerful 16-channel Turbo HD DVR designed for large-scale CCTV installations such as businesses, schools, warehouses, and commercial buildings.With support for up to 16 analog cameras, this DVR provides extensive coverage for security monitoring. It also supports additional IP cameras, allowing users to expand their system without replacing existing infrastructure.

The DVR uses H.265+ compression technology, which significantly reduces storage requirements while maintaining high video quality. This allows longer recording periods even with a single hard drive

Key Features

• 16 Channel DVR – Supports up to 16 analog cameras (HDTVI/AHD/CVI/CVBS) for large surveillance setups
• 1080p Lite Recording – Provides clear HD video while optimizing storage usage
• Hybrid System (Analog + IP) – Supports additional IP cameras (up to 18 channels, max 5MP) for scalability
• H.265+/H.265 Compression – Advanced compression reduces storage and bandwidth usage
• Motion Detection 2.0 – Smart detection distinguishes humans and vehicles, reducing false alarms
• Dual Video Output (HDMI + VGA) – Connect to monitors or TVs for live viewing
• Audio Over Coax – Supports audio transmission through coaxial cable
• Remote Viewing Support – Monitor cameras via mobile apps or PC from anywhere
• Compact Plastic Body – Lightweight and cost-effective for medium to large installations


  Specifications

  • Model: DS-7116HGHI-M1(STD)(E)
  • Channels: 16 Analog Channels
  • IP Camera Support: Up to 18 channels (max 5MP)
  • Recording Resolution: Up to 1080p Lite
  • Compression: H.265+/H.265/H.264+/H.264
  • Video Output: HDMI + VGA
  • Storage: 1 SATA HDD (up to 10TB)
  • USB Ports: 2 × USB 2.0
  • Network: RJ45 Ethernet (10/100 Mbps)
  • Audio: Audio over coaxial
  • Body: Plastic casing
