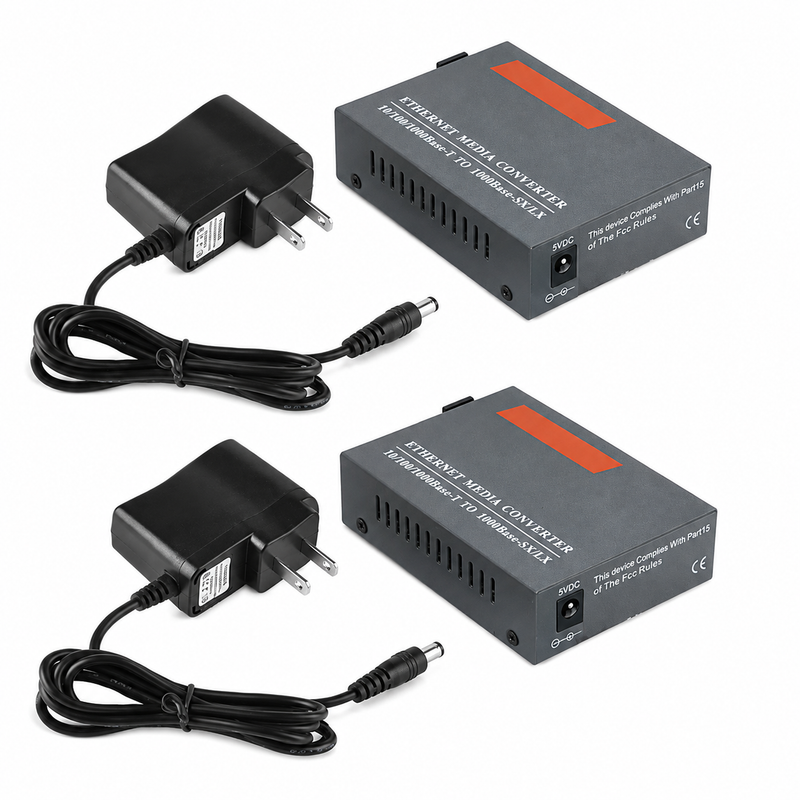

Single-mode Fiber Optic Ethernet Media Converter 1000 base (pair)
A Single-mode Fiber Optic Ethernet Media Converter 1000Base (also known as Gigabit Ethernet Media Converter) is a networking device designed to extend Ethernet connections over long distances by converting electrical Gigabit Ethernet signals (1000 Mbps) to optical signals using single-mode fiber.
🔧 Key Features of 1000Base Single-mode Fiber Optic Media Converter:
-
Speed Support:
-
Supports 1000 Mbps (1 Gbps) Gigabit Ethernet per IEEE 802.3z/802.3ab standards.
-
-
Media Conversion:
-
Converts between:
-
Copper (RJ45) to
-
Single-mode fiber (SC/LC/ST interface depending on model).
-
-
-
Fiber Typesingle-mode fiber, optimized for long-distance transmission.
-
Transmission Distance:
-
Common ranges: 10 km, 20 km, 40 km, 60 km, 80 km, or even up to 120 km, depending on model and optical transceiver power.
-
-
Wavelength:
-
Typically uses 1310 nm for up to 20 km
-
Uses 1550 nm for longer distances (40 km+)
-
-
Connector Types:
-
Copper side: RJ45 (Auto MDI/MDIX)
-
Fiber side: SC, LC, or SFP slot for pluggable modules
-
-
Duplex Modes:
-
Supports full-duplex communication for fiber and copper
-
-
Auto-Negotiation & Auto MDI/MDIX:
-
Automatically configures the link speed and crossover type
-
-
LED Indicators:
-
Power, Link/Activity, Speed, FX Link (fiber status), and more
-
-
Power Options:
-
External adapter or integrated PSU
-
Options for industrial DIN-rail mount or rack-mount chassis (for multiple converters)
-
-
Standards Compliance:
-
IEEE 802.3ab (1000Base-T)
-
IEEE 802.3z (1000Base-LX)
-
IEEE 802.3x (Flow Control)
-
-
Build Options:
-
Standalone units or modular cards for managed media converter chassis
-
📘 Typical Applications:
-
Enterprise networks extending gigabit Ethernet across buildings or campuses
-
Data centers connecting core switches to remote racks
-
Telecom and ISP infrastructure over long-haul fiber
-
Industrial or transportation systems requiring ruggedized long-range Ethernet links
