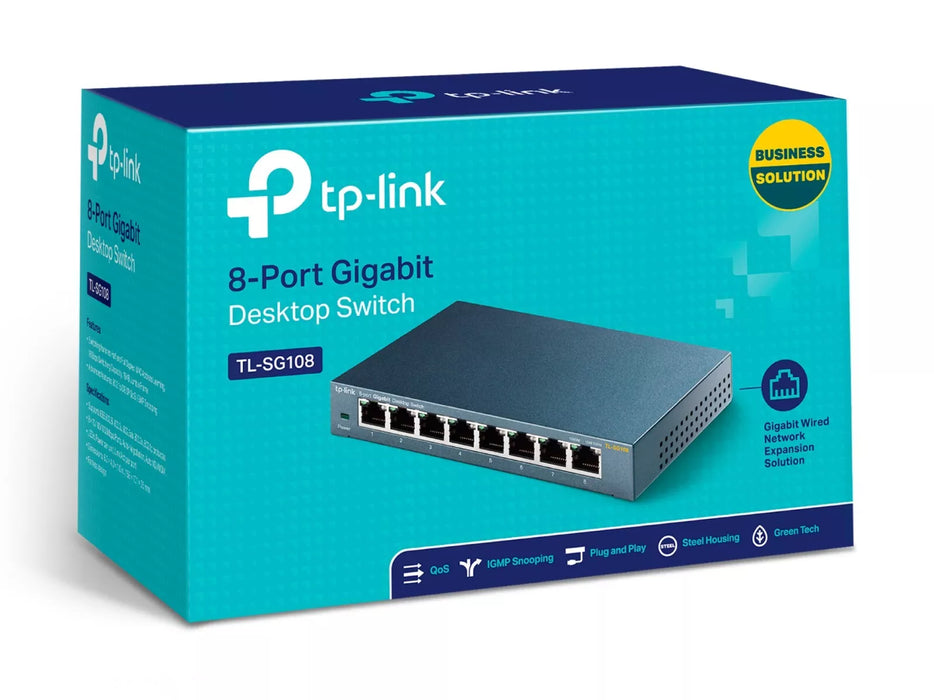

TP-Link 8-Port Gigabit Desktop Ethernet Switch
Key Features
-
8 × 10/100/1000 Mbps RJ‑45 ports with auto-negotiation and Auto MDI/MDIX—ensures easy connectivity without crossover cables
-
Non-blocking 16 Gbps switching capacity, enabling full gigabit performance on all ports simultaneously
-
Green Ethernet technology reduces power by up to ~80% by powering down idle ports and adapting to cable length
-
Fanless, silent design in a compact plastic case (desktop or wall-mountable) – ideal for noise-free environments
-
Support for jumbo frames up to 15 KB – improves performance when transferring large files
-
Flow control (IEEE 802.3x, backpressure) for stable data transfer
-
Store-and-forward switching with MAC address auto-learning and 4 K‑entry MAC table
-
Plug-and-play – no configuration or management interface needed
⚙️ Specifications
Attribute | Details |
---|---|
Ports | 8 × 10/100/1000 Mbps RJ‑45 |
Switching Capacity | 16 Gbps |
Jumbo Frame Support | Up to 15 KB |
MAC Address Table | 4,000 entries |
Power Consumption | Max 4.6 W (≈15.8 BTU/h) |
Dimensions | ~180 × 90 × 26 mm |
Case | Fanless, plastic, desktop/wall-mountable |
Power Supply | External adapter (9 V DC, 0.6 A) |
Certifications | FCC, CE, RoHS |
Temperature Range | 0 – 40 °C (operating); –40 – 70 °C (storage) |
Humidity | 10–90% operating; 5–90% storage |
