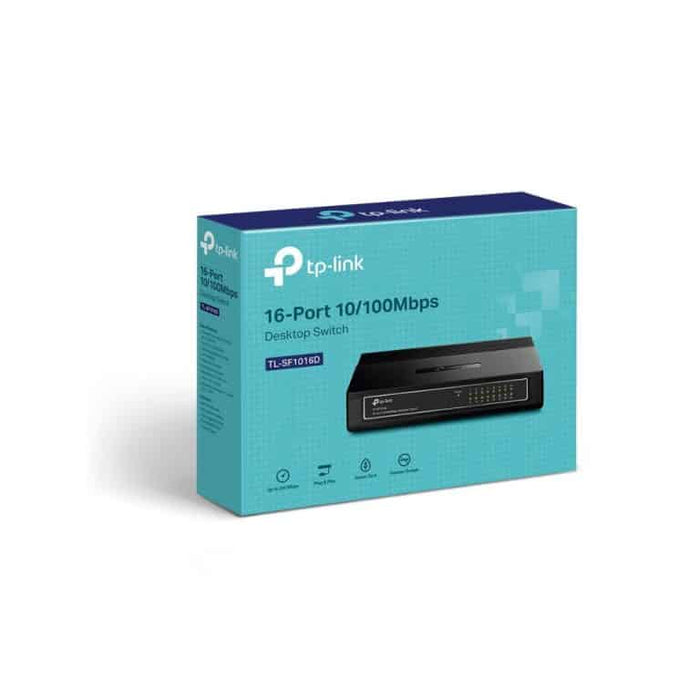

TP-Link TL-SF1016D – 16-Port 10/100 Mbps Desktop Switch
-
Ports: 16 × RJ‑45 ports with 10/100 Mbps auto‑negotiation and Auto MDI/MDIX—no crossover cables needed
-
Plug & Play: Unmanaged with automatic learning, simply connect devices—no setup required .
-
Green Ethernet: Energy-efficient design dynamically adjusts power based on link status and cable length, saving up to 80% power and reduces plastic in packaging
-
Flow Control: IEEE 802.3x flow control in full-duplex and backpressure in half-duplex ensure reliable transmission during congestion
-
Architecture: Non-blocking store-and-forward switching provides full wire-speed performance
-
Housing / Orientation: Fanless plastic casing; can be placed on a desk or mounted to a wall .
⚙️ Hardware & Performance Specs
| Spec | Detail |
|---|---|
| Switching Capacity | 3.2 Gbps backplane |
| MAC Address Table | 1 K–2 K entries depending on version |
| Max Power Use | Around 3 – 3.2 W (~11 BTU/h) |
| Packet Rate | ≈ 2.38 M pps |
| Dimensions | ~200 × 142 × 40 mm (7.9 × 5.6 × 1.6 in) |
| Operating Conditions | 0 – 40 °C, 10–90% humidity non-condensing |
| Power Supply | External adapter (5 V DC / 0.6 A) |
✅ Benefits
-
Easy expansion for wired home or small office networks with minimal setup.
-
Silence guaranteed—no fan to produce noise.
-
Lower energy usage, ideal for eco-conscious environments.
-
Compact and flexible, suitable for desktops or walls.
-
Reliable packet forwarding and traffic handling during congestion.
