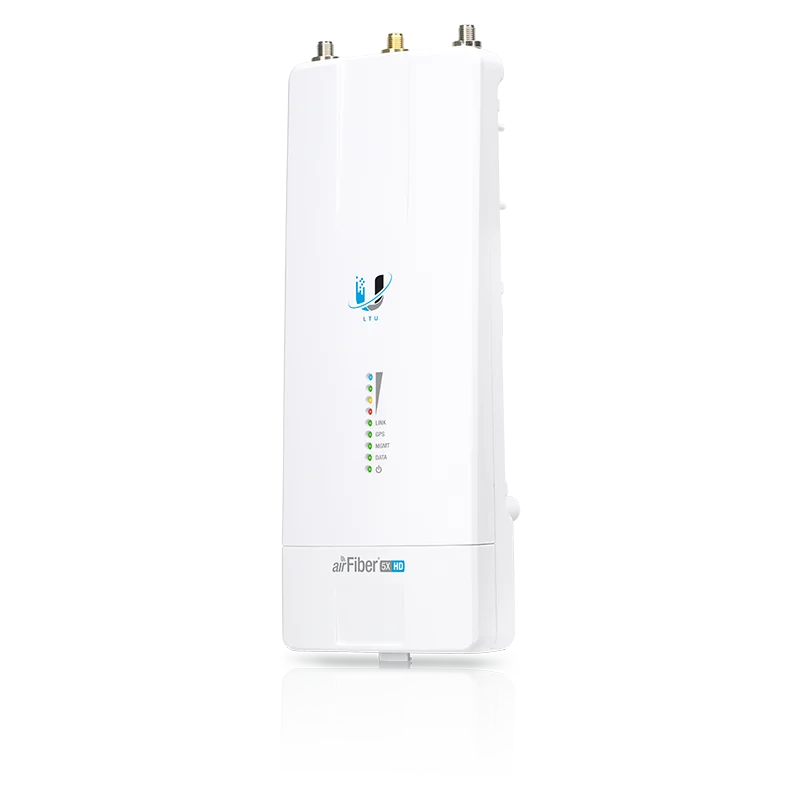

Ubiquiti AF-5XHD AirFiber 5X HD 5GHz Long-Range PtP Radio
Ubiquiti AF-5XHD AirFiber 5X HD 5GHz Long-Range PtP Radio

Ubiquiti AF-5XHD AirFiber 5X HD 5GHz Long-Range PtP Radio

Sold out
KSh50,000.00 - KSh50,000.00
KSh50,000.00
KSh50,000.00 - KSh50,000.00
KSh50,000.00

The Ubiquiti AF-5XHD AirFiber 5X HD is a powerful long-range point-to-point (PtP) radio engineered for high-capacity wireless backhaul and ISP networks. Built using Ubiquiti’s LTU (Long-Term Ubiquiti) technology, it breaks the limitations of traditional Wi-Fi-based radios and delivers superior performance, efficiency, and scalability. Its GPS synchronization feature makes it ideal for tower deployments, allowing multiple radios to operate together without interference. Combined with advanced modulation and spectral efficiency (21.2 bps/Hz), it ensures stable and high-speed connectivity over long distances.

Designed for outdoor use, the AF-5XHD pairs with airFiber X antennas or RocketDish antennas to create a complete long-range wireless bridge solution.

Perfect for:

  • WISPs (Wireless Internet Service Providers)
  • Enterprise backhaul networks
  • Campus and building-to-building links
  • CCTV and data transmission over long distances

Available now at Adepta Kenya.

Key Features

  • Ultra-High Throughput (1+ Gbps) – Delivers up to 1.34 Gbps real throughput for high-capacity backhaul
  • 5 GHz Long-Range Connectivity – Supports links over 100 km (line-of-sight) with proper setup
  • LTU Technology (Next-Gen AirFiber) – Custom chipset for improved efficiency, lower latency, and better performance than standard WiFi radios
  • Flexible Channel Bandwidths (10–100 MHz) – Optimize performance based on spectrum availability
  • Advanced Modulation (Up to 1024QAM/4096QAM) – Higher data rates and improved spectral efficiency
  • GPS Synchronization – Enables co-location of multiple radios with minimal interference
  • Dual Gigabit Ethernet Ports – Supports redundant PoE power input for reliability
  • Bluetooth Configuration – Easy setup via mobile device
  • Carrier-Grade Performance – Designed for WISPs, ISPs, and enterprise backhaul networks
  • Advanced Interference Mitigation – Built-in spectrum analysis and noise filtering

    Specifications

    • Model: AF-5XHD
    • Frequency Range: 4.8 – 6.2 GHz
    • Throughput: Up to ~1.34 Gbps
    • Channel Width: 10 / 20 / 30 / 40 / 50 / 60 / 80 / 100 MHz
    • Modulation: Up to 1024QAM (4096QAM with upgrade)
    • Max TX Power: Up to 29 dBm
    • Ports: 2 × Gigabit Ethernet (PoE)
    • GPS Sync: Yes (external GPS antenna included)
    • Power Input: PoE
    • Operating Temperature: -40°C to 60°C
    • Mounting: Antenna-mounted (airFiber X / RocketDish compatible)
