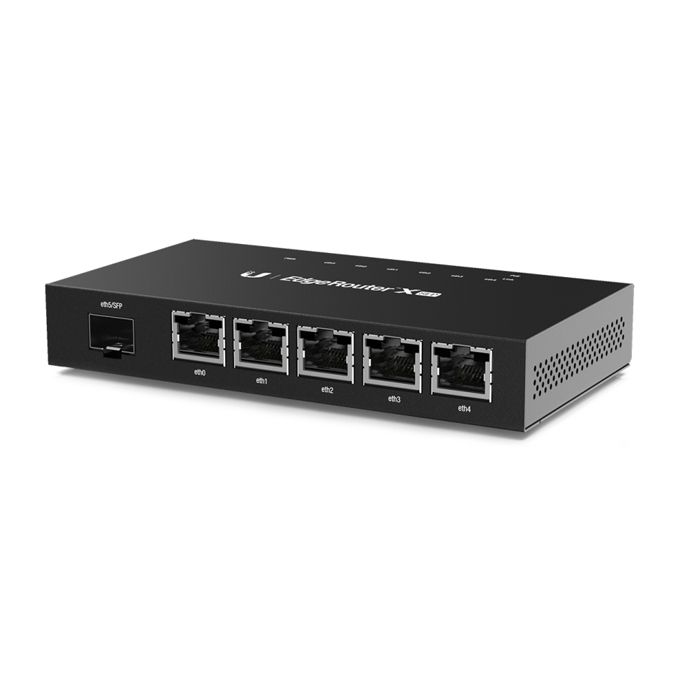

Ubiquiti EdgeRouter X SFP (ER-X-SFP) – 5-Port Gigabit Router with Fiber Port

The Ubiquiti EdgeRouter X SFP (ER-X-SFP) is an advanced, compact router designed for high-performance networks, ISPs, and professional installations. It combines five Gigabit Ethernet ports with a dedicated SFP fiber port, making it ideal for setups that require both copper and fiber connectivity.

Unlike the standard ER-X, this model includes an SFP port, allowing direct connection to fiber networks for faster and longer-distance communication—perfect for backhaul links, FTTH setups, or business networks.

With 24V passive PoE output, the router can power devices like Ubiquiti airMAX radios or access points, reducing the need for extra power adapters.

Key Features

• 5 Gigabit Ethernet Ports – High-speed RJ45 ports for reliable wired networking

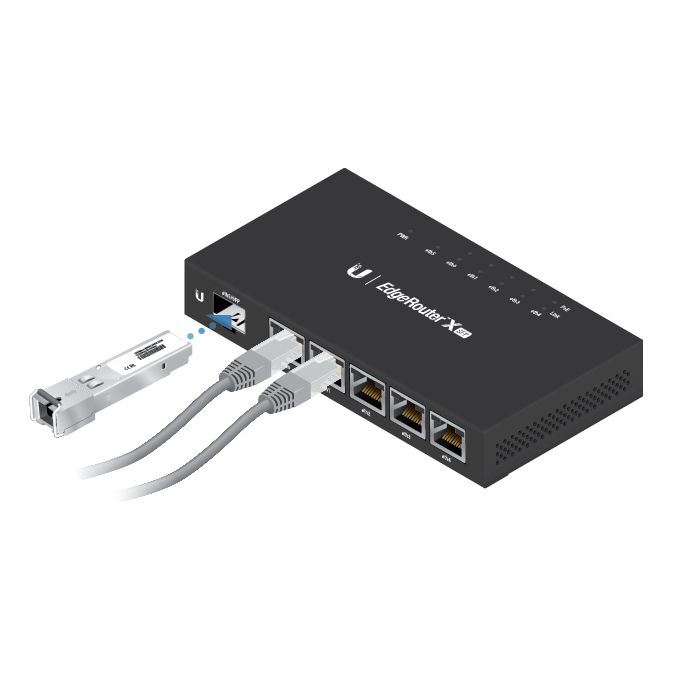

• 1 Gigabit SFP Port – Supports fiber connectivity for long-distance or ISP backhaul links
• 24V Passive PoE Output – Power up to 5 compatible devices like access points or CPE radios
• Advanced Routing Performance – Handles up to 1 Gbps throughput for efficient data flow
• EdgeOS Operating System – Web UI + CLI for advanced configuration and monitoring
• Flexible Port Configuration – Supports routing, switching, VLANs, and advanced networking
• Compact & Low Power Consumption – Uses about 5W, ideal for continuous operation
• Carrier-Grade Features – Firewall, NAT, VPN, QoS, and routing protocols (OSPF, BGP, etc.)



  Specifications

  • Model: ER-X-SFP
  • Ports: 5 × Gigabit RJ45 + 1 × Gigabit SFP
  • Processor: Dual-Core 880 MHz
  • RAM: 256 MB DDR3
  • Storage: 256 MB NAND
  • Throughput: Up to 1 Gbps
  • PoE Output: 24V Passive PoE (up to 50W total)
  • Power Input: 24V DC Adapter
  • Operating System: EdgeOS
  • Power Consumption: ~5W
  • Mounting: Desktop / Wall-mount
