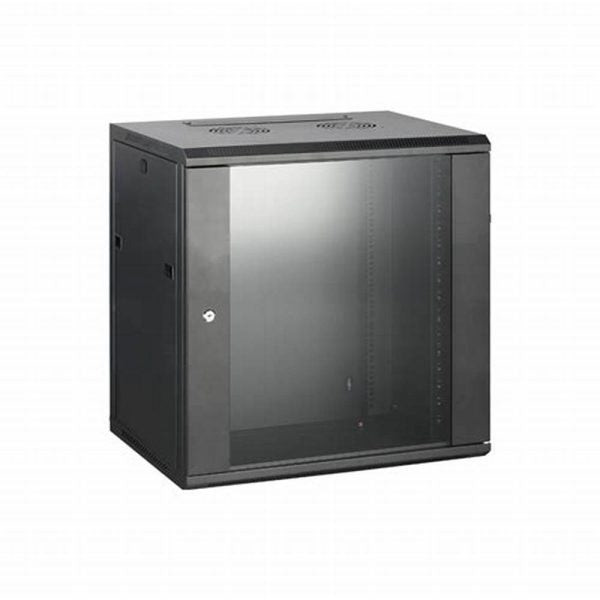

Wall Mount 12U Network Data Cabinets

A Wall Mount 12U Data Cabinet is a medium-to-large-sized rack enclosure that offers 12 rack units (U) of space for mounting standard 19-inch networking and IT equipment. Wall-mounted to save floor space, it's ideal for branch offices, telecom rooms, data distribution points, or security and surveillance setups.

🔧 Key Features

📐 Size and Capacity

• 12U Rack Height:

  • 1U = 1.75 inches → 12U = 21 inches (533 mm) of vertical mounting space

• Supports standard 19" rack-mountable devices such as:

  • Network switches and patch panels

  • Firewalls, routers, modems

  • CCTV DVR/NVR systems

  • UPS units and cable organizers

🏗️ Construction

• Made of cold-rolled steel for high strength and durability

• Finished with black powder coating to resist scratches and corrosion

• Available in welded (more durable) or flat-pack/knockdown (easy to transport) styles

🔒 Security Features

• Lockable front door:

  • Tempered glass (for visibility) or

  • Perforated steel (for ventilation)

• Optional lockable side panels for extra access and security

• Protects equipment from unauthorized tampering

🌬️ Ventilation & Cooling

• Ventilation slots on top, bottom, and sides

• Fan trays or mounts for 1–2 cooling fans (optional or built-in)

• Some models include pre-installed fans for active cooling

⚙️ Cable Management

• Multiple cable entry points (top, bottom, rear)

• May include rubber grommets or plastic knockouts

• Compatible with internal cable organizers or trays

🧰 Mounting & Accessibility

• Wall-mountable via rear mounting holes or brackets

• Some models offer:

  • Swing-out rear section for rear access

  • Adjustable mounting rails to fit deeper equipment

  • Reversible front door hinge

📏 Typical Dimensions

Spec	Typical Range
Height	~635 mm (25 inches)
Width	~550–600 mm (21.6–24 inches)
Depth	450–600 mm
Load Capacity	~50–80 kg (110–176 lbs



Choose the depth based on the size of your equipment (450 mm is common, 600 mm suits deeper gear like UPS units).
