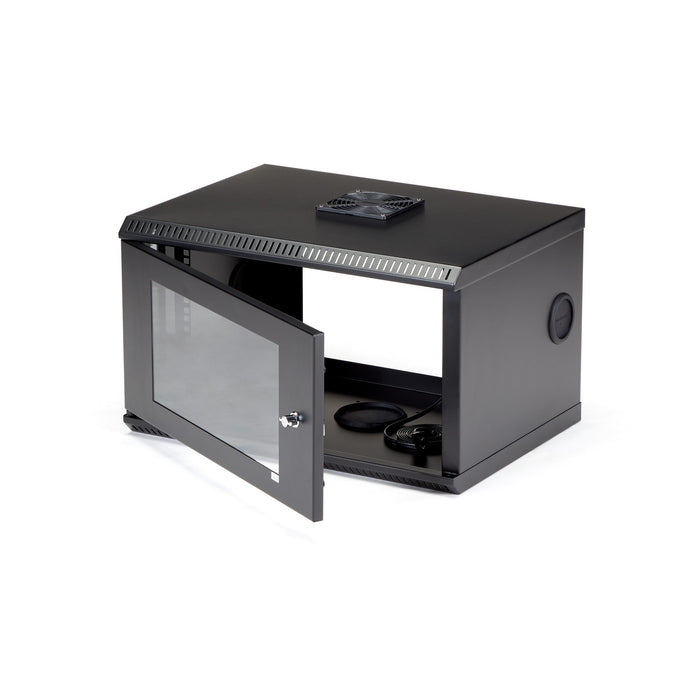

Wall Mount 6U Network Data Cabinets

A Wall Mount 6U Data Cabinet is a compact, secure enclosure designed to house networking equipment such as switches, patch panels, routers, and small servers. It is mounted directly to a wall, saving valuable floor space, making it ideal for small to medium-sized networks, offices, retail spaces, or remote sites.

Key Features

Size and Capacity

• 6U rack height:

  • “U” stands for rack unit; 6U = 10.5 inches (26.7 cm) of usable vertical space

• Typically fits:

  • Standard 19-inch rack-mount equipment

  • Several patch panels, a small switch, and/or network accessories

Construction

• Made from cold-rolled steel for durability and protection

• Powder-coated finish for corrosion resistance

• Welded or knock-down (flat-pack) design options

Security

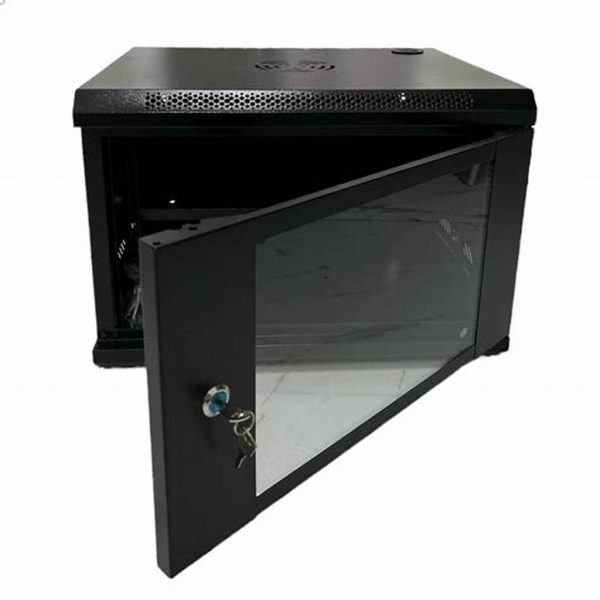

• Lockable front door (usually with glass or perforated metal)

• Side panels may also be lockable or removable for easy access

• Protects equipment from unauthorized access and physical damage

Cooling & Ventilation

• Ventilation slots or perforated panels

• Support for 1–2 fan mounts (fans may be optional or built-in)

• Helps maintain airflow and prevent overheating

Mounting & Installation

• Mounts directly to a wall using heavy-duty brackets

• Some models have:

  • Reversible doors

  • Swing-out sections for rear access

  • Removable side panels

Cable Management

• Cable entry points at top and bottom (sometimes rear)

• Rubber grommets or plastic caps for dust protection

• Internal cable management rails (optional)

Other Features

• Load capacity: ~40–60 kg (88–132 lbs) depending on model

• Adjustable mounting rails to accommodate various device depths

• Front door options:

  • Tempered glass (visibility)

  • Steel mesh (airflow)

  • Solid metal (security)
